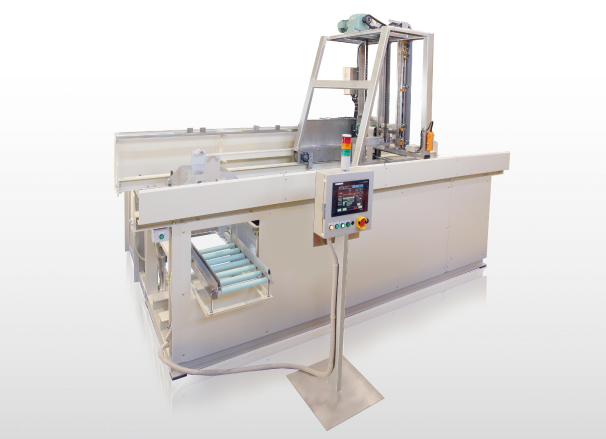

ＲＡＣＣＯＯＮ－Ｓ Rack type compact metal cleaner
Rack type compact RACOON-S has enhanced washing efficiency with microbubbles.
It maintains the cleansing effect even with less amount of water and detergent.
The features of the rack type compact cleaner are:
- Equipped with a microbubble generator
- Washing efficiency is increased by tiny bubbles 0.1-0.01mm in diameter.
Decrease the amount of degreasing agent used.
- Equipped with ultrasonic oscillator
- In addition to micro-bubbles, increase the effectiveness of degreasing agent with ultrasonic waves. It is also capable of precision cleaning, removing fine dirt from products.
- Decrease the amount of water and detergent used without affecting the washing effectiveness.
- By shortening the water washing process, the amount of water used is decreased. Drainage equipment is also unnecessary.
※When renewing fluid, it is necessary to take out waste fluid.
- The rack holds each product to prevent dents or scratches during the washing process.
- During the washing process, protective cartridges hold each individual product to prevent dents or scratches from the oscillation of ultrasonic waves,etc.
- The oil trap tank reduces the frequency of detergent exchange.
- An oil trap tank reduces the frequency of detergent exchange The relative gravity causes oil to rise to the surface where it is constantly removed, extending the life span of degreasing fluid.
High-density microbubbles remove dirt from products!
- STEP1Dirt absorbed with electrification
- Dirt is absorbed by the electrification of the micro-bubbles.
- STEP2Capture dirt
- Dirt is captured on and detached from the bubbles' surface to wash.
- STEP3Impact of bubble crushing
- The impact of bubble crushing removes even more dirt.
- STEP4Detach and float
- Furthermore it detaches dirt and floats it.
- STEP5Products are cleaned thoroughly!
RACCON-S is made to suit the specific washing needs of each one of our clients.
This flexibility enables us to create a machine that is an exact match for your product.
| RACCOON-S Specification Guide |
| TYPE |
Rack Type Compact Metal Cleaner |
| COLOUR |
Specified Clolur by Customer |
| SIZE |
Specified Clolur by Customer |
| Noise Level |
Approx.90dB |
| Weight |
Appprox.2500kg |
| Voltage Source |
AC200V(Voltage Source can be changed at additional cost) |
- All spec data given above is for guide purpose only.
- Actual capacity depends on the shape/size of the product and how much washing it need.
- Electrical work on the factory side is not included.
- Heaters, microbubble generators, and ultrasonic wave devices are included.
- Keep the machine away form oil mist and do not use it in air that contains oil mist.
- All data provided here can be changed depending on the environment, temperature and washing needs of the product.This is not performance guarantee.
