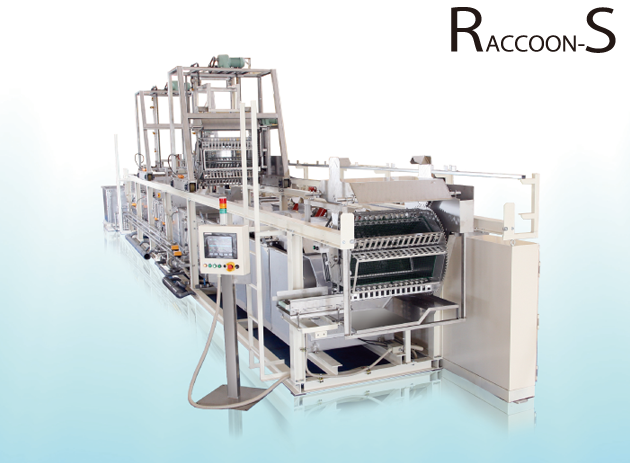

ＲＡＣＣＯＯＮ－Ｓ BARREL TYPE WASHING MACHINE
- POINT1
- Wash away thick press forming oil and smut.
- POINT2
- Use of heated blow dryers powerfully driesproducts and drastically reduces water marks.
- POINT3
- No drainage treatment facility is needed at your factory.
Drainage Treatment Unit
COD components in the drain are degraded with UV irradiation.
Only oxygenated water is used for this treatment unit, which means, no more sludge.
RACCON-S is made to suit the specific washing needs of each one of our clients.
This flexibility enables us to create a machine that is an exact match for your product.
| RACCON-S Specification Guide |
| TYPE |
Barrel Type Washing Machine |
| COLOUR |
Specified Colour by Customer |
| SIZE |
【High Grade】2,850×13,486×3,555㎜
【Standard】2,850×11,860×3,300㎜ |
| CAPACITY |
Cylindrical Battery Case |
【size】18Φ×65㎜
8,000,000pcs/month～ |
| Square Battery Case for Movile Phone |
【size】4×50×71㎜
8,500,000pcs/month～ |
| Square Battery Case for EV |
【size】20×80×160㎜～45×170×130㎜
900,000pcs/month～ |
| Pure Water Production Cost |
300JPY/（3ｔ/h）※Calculated rate 100JPY/t |
| Noize Level |
Approx. 90dB |
| Weight |
【High Grade】5,000㎏【Standard】4,500㎏ |
| Voltage Source |
AC200V
（Voltage Source can be changed at additional cost） |
- As RACCOON-S is custome made, all spec data given above is for guide purpose only.
- Two types of machines are available; the octahedral barrel(High Grade) or the hexahedral barrel(Standaed).
- Barrel type depends on capacity and is calculated by 22 hours / day 21 days /month.
- Actual capacity depends on the shape / size of the product and how much washing it need.
- Electrical work on the factory side is not included.
- Keep the machine away from oil mist and do not use it in air that contains oil mist.
- All data provided here can be changed depending on the environment, temperature and washing needs of the product.This is not performance guarantee.
